Set Up MFA Information with Authenticator App (WinAuth)

This page explains how to register the WinAuth desktop authenticator app for Windows as your MFA information.

Step 1: Preparation

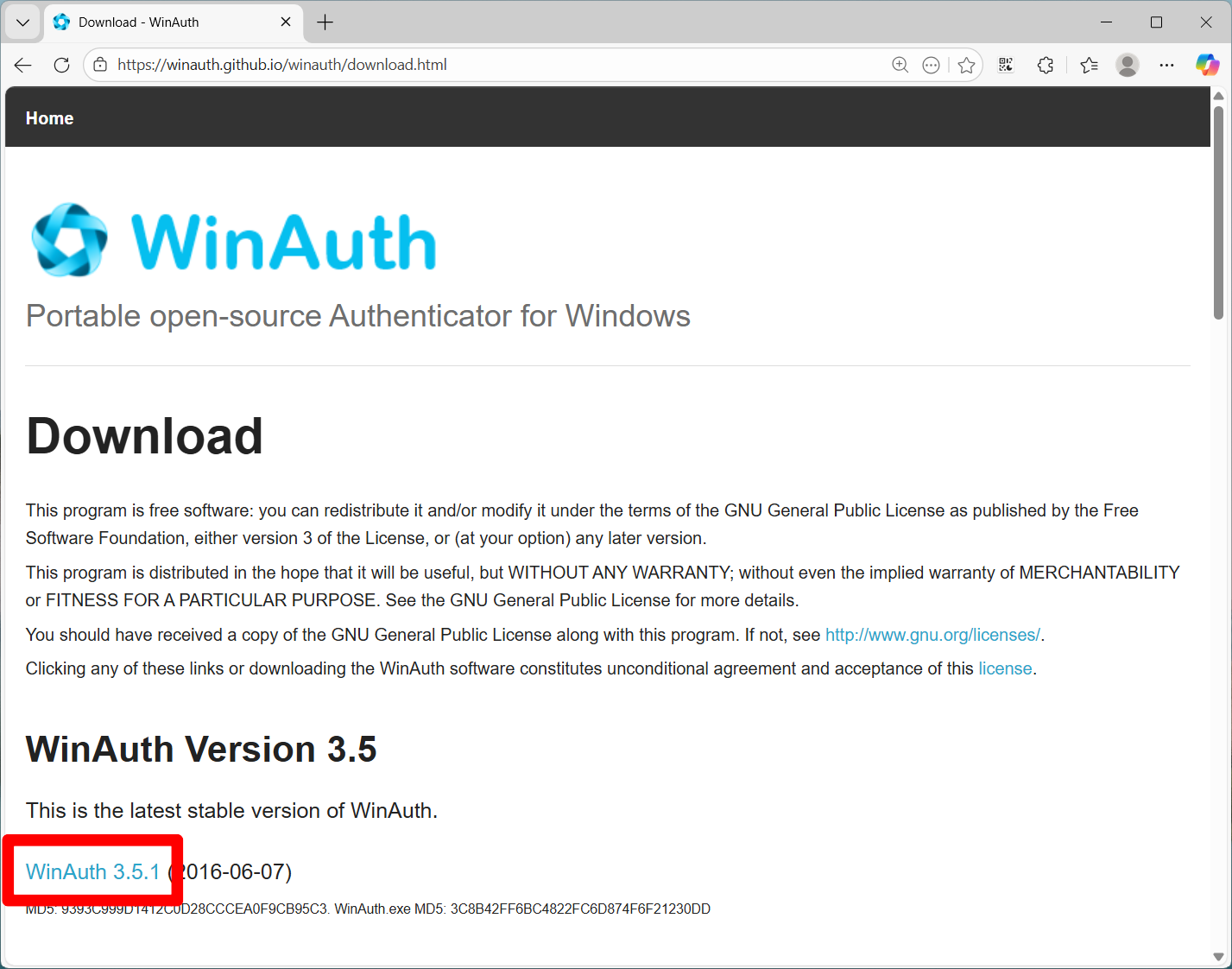

1. Open the link below on your PC, and click “WinAuth 3.5.1” to download it:
   https://winauth.github.io/winauth/download.html

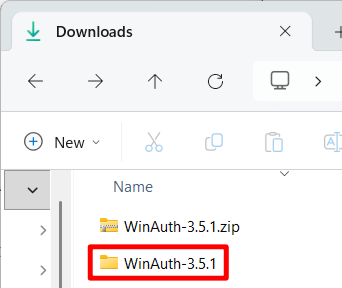

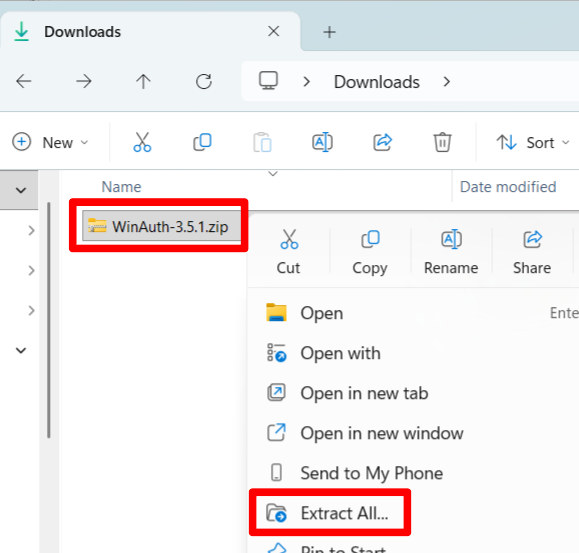

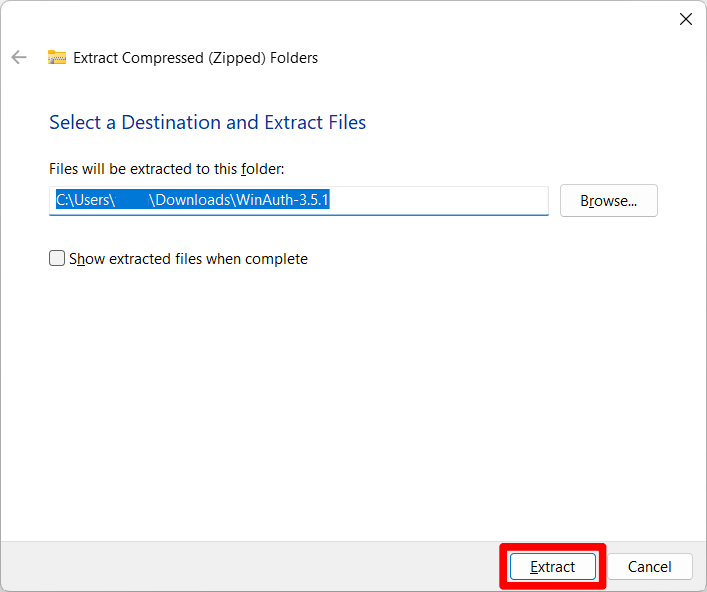

2. Once the file is downloaded, right-click it and select “Extract All” to unzip the files.


3. After extracting the files, installation is complete. Proceed to Step 2.


Step 2: Registration

1. Access https://mysignins.microsoft.com/security-info on your PC.


2. If the sign-in screen appears, enter your Kyushu University primary email address (…..@m.kyushu-u.ac.jp) and click “Next.”
   Then, enter your SSO-KID and password, and click “Sign in.”


3. The next steps depend on the screen displayed.

   • If the screen shows “Let’s keep your account secure”, Click “Next”.


   • If the “Security info” screen appears, Click “Add sign-in method”, then choose “Microsoft Authenticator”.


4. Click “Set up a different authentication app."

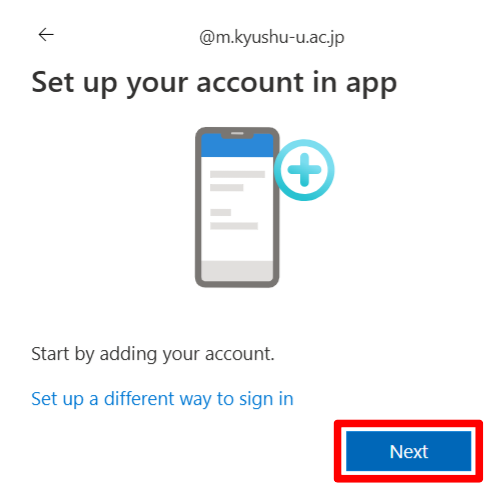

5. Click “Next."

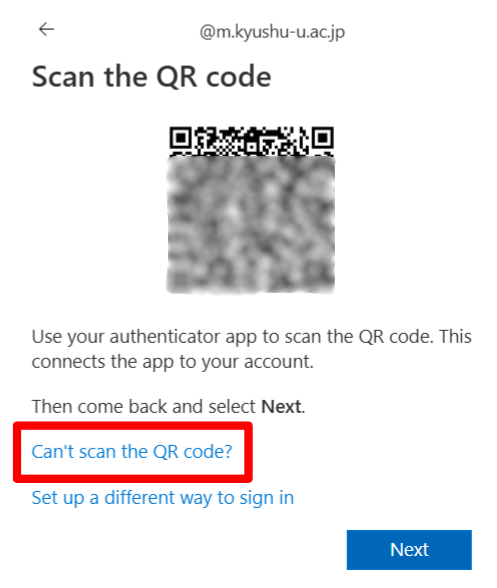

6. A QR code will appear. Click “Can’t scan the QR code?”.

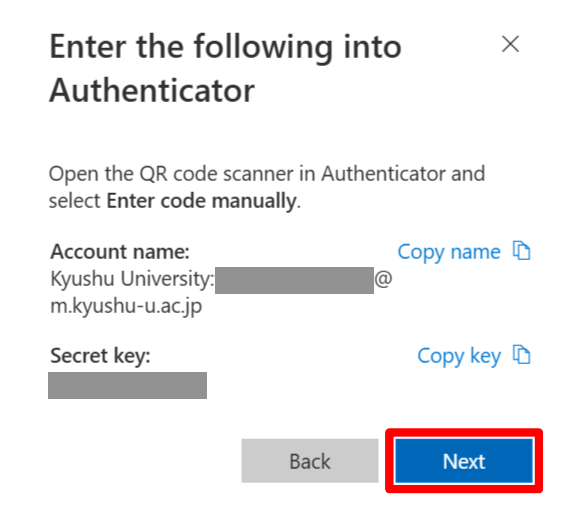

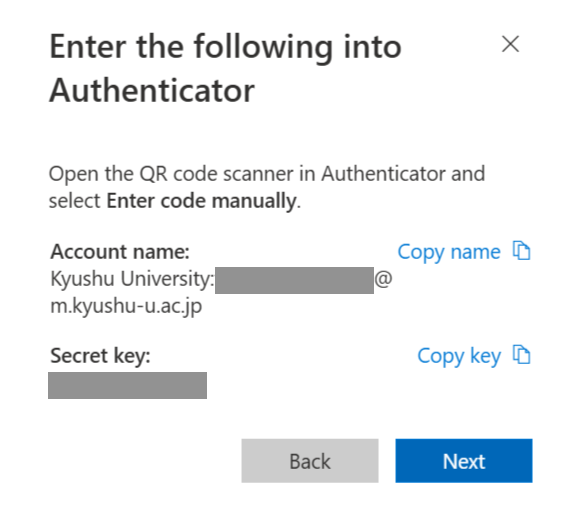

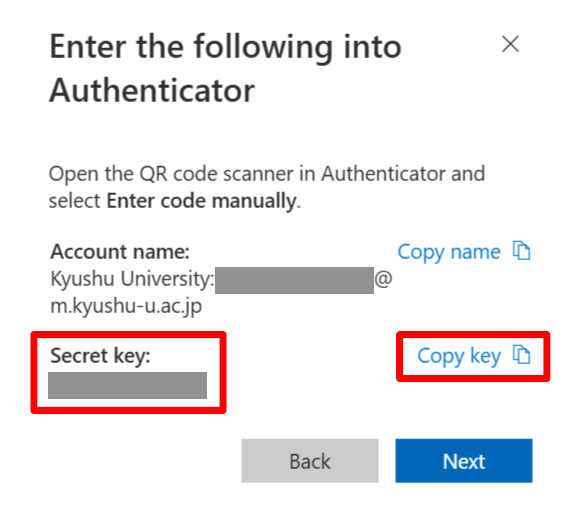

7. The following screen will be displayed:

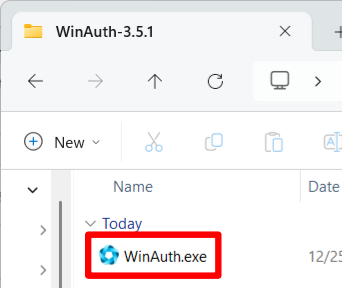

8. From here, switch to the WinAuth app you downloaded earlier. Open the folder you extracted earlier and double-click “WinAuth.exe”.

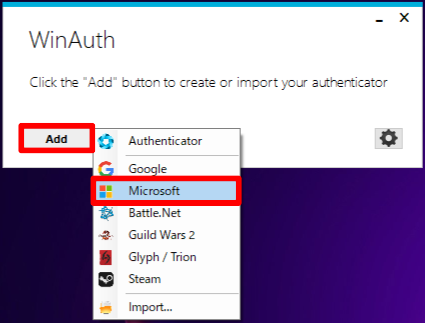

9. When this screen appears, click “Add” → “Microsoft”(not “Authenticator”).

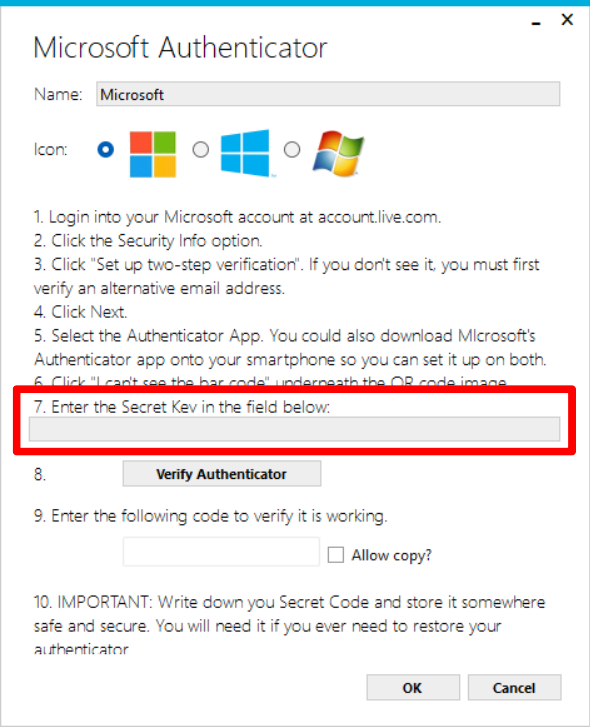

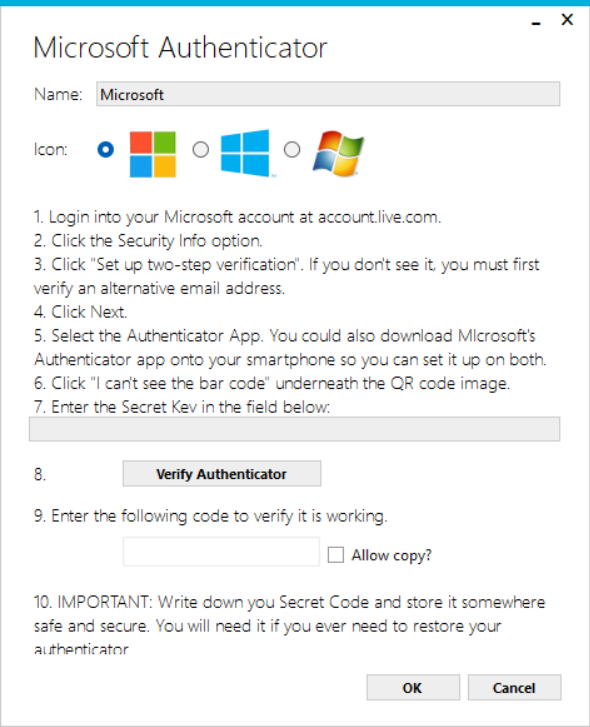

10. The following screen will be displayed:


11. Copy the “Secret key” from the browser (Step 7) and paste it into field “7” in WinAuth.

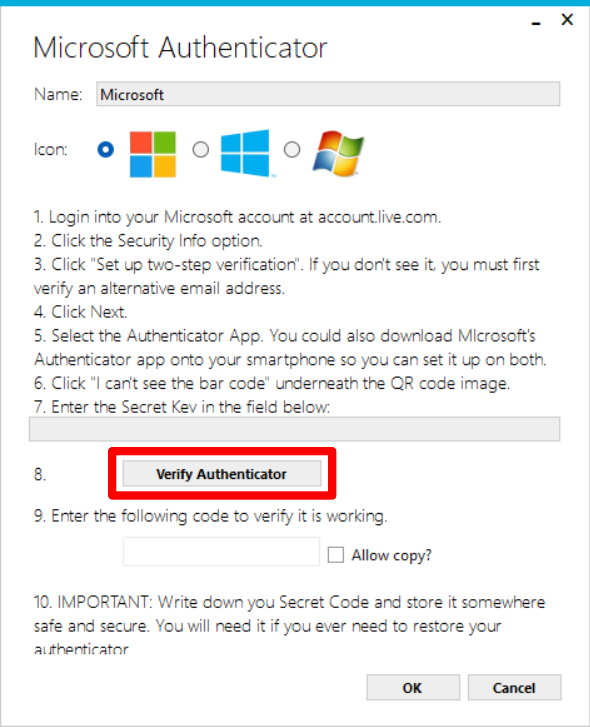

12. Click “8. Verify Authenticator.”

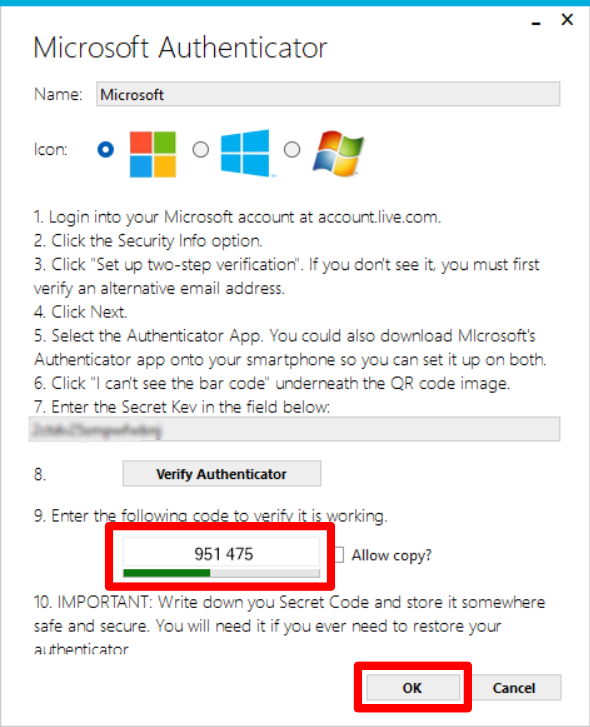

13. If a 6-digit one-time password appears under “9. Enter the following code to verify it is working”, click “OK.”

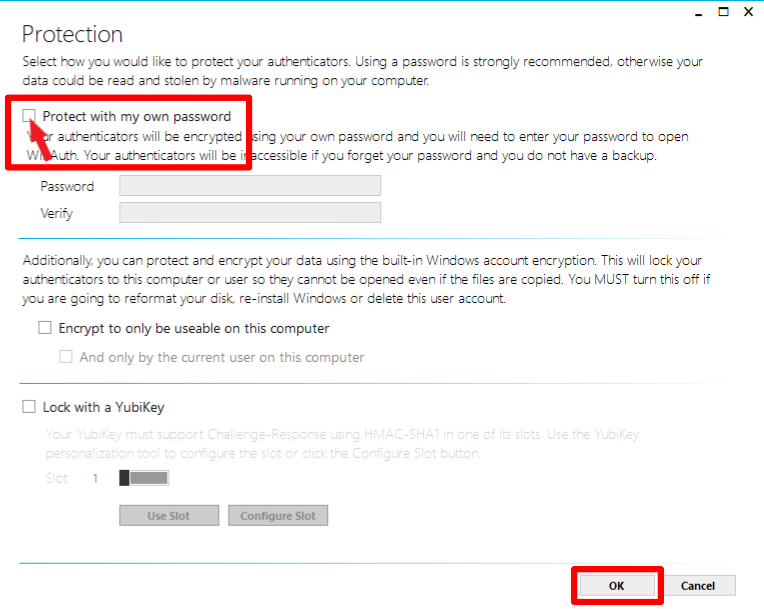

14. The “Protection” screen will appear. Uncheck “Protect with my password” and click “OK.”
    *This setting determines whether a password is required when launching WinAuth.

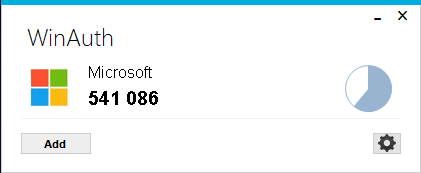

15. A 6-digit one-time password will be displayed.


16. Return to the browser and click “Next.”

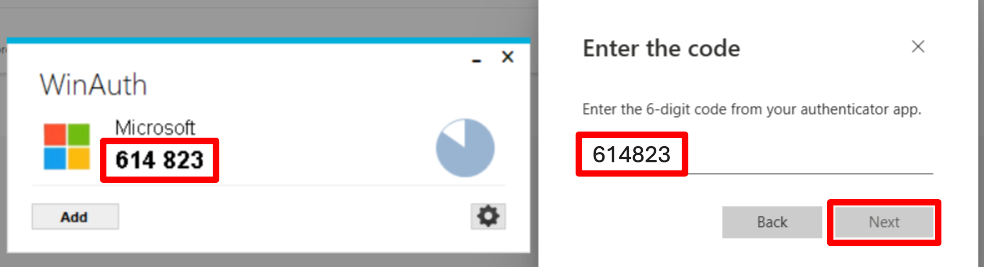

17. Enter the 6-digit code shown in WinAuth into the “Enter code” field in your browser, then click “Next”.
    *The password expires quickly. If it disappears, click the refresh button to display a new code.


18. When the following screen appears, the registration is complete. Click “Done.”
